Connecting databases to Hasura GraphQL engine

Introduction

From v2.0.0 onwards Hasura GraphQL engine allows connecting to multiple databases and build a unified GraphQL API based on the database schemas.

Connect a database

In versions v2.0.0 and above, databases can be connected and removed dynamically without having to restart the GraphQL engine instance via the console / metadata APIs / CLI:

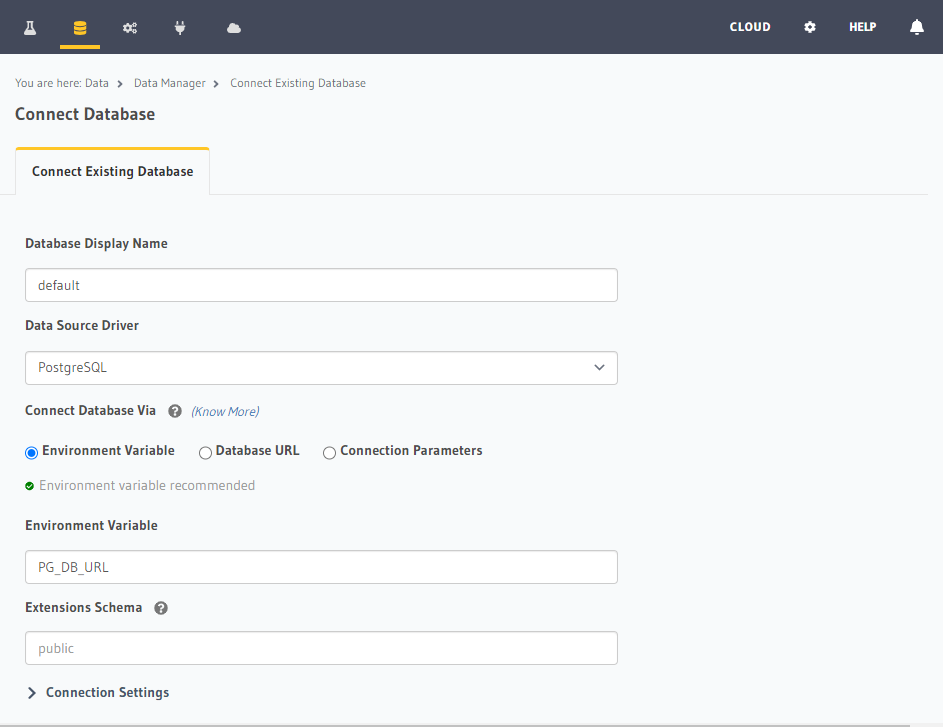

Console

Head to Data -> Manage -> Connect database

CLI

In your config v3 project, head to the /metadata/databases/databases.yaml file and add the database configuration as below:

- name: <db_name>
  configuration:
    connection_info:
      database_url:
        from_env: <DB_URL_ENV_VAR>
      pool_settings:
        idle_timeout: 180
        max_connections: 50
        retries: 1
    tables: []
    functions: []

Apply the metadata by running:

hasura metadata apply

API

Depending on the type of database, you can add a database using the sources metadata API.

For example:

POST /v1/metadata HTTP/1.1
Content-Type: application/json
X-Hasura-Role: admin

{
  "type": "pg_add_source",
  "args": {
    "name": "<db_name>",
    "configuration": {
      "connection_info": {
        "database_url": {
          "from_env": "<DB_URL_ENV_VAR>"
        },
        "pool_settings": {
          "retries": 1,
          "idle_timeout": 180,
          "max_connections": 50
        }
      }
    }
  }
}

Note

• You can connect to databases either using env vars or by using their raw connection string/parameters. It is recommended to use env vars for better security (as connection details are part of Hasura metadata) as well as to allow configuring different databases in different environments (like staging/production) easily.
• A Postgres database can be connected using the HASURA_GRAPHQL_DATABASE_URL env var as well in which case it gets added automatically as a database named default

Create a new Postgres DB inside Hasura Cloud

For a quick start with Hasura, you can also create a Postgres database with Neon from inside of Hasura Cloud. For more information, see Connect new/existing database on Hasura Cloud.

Connecting different Hasura instances to the same database

You can connect different Hasura instances (i.e. instances with different metadata) to the same database as long as there are no Event Triggers in any of the metadata. Event Triggers store their data in the underlying database and hence different instances acting on the same data can cause undefined behaviour during run-time. This should not be a problem if the Hasura instances have the same metadata.
